Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified

Name: Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified
Brand: WINLEY
Price: 1000 USD

Quality Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified for sale

Brand Name : WINLEY

Model Number : D-25/5

Certification : UL,cUL,CE,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : $1000-$10000

Payment Terms : T/T

Supply Ability : 5000set/month

Delivery Time : 30days

Packaging Details : Plywood case

Transformer Type : CSP Type Overhead Distribution Transformer

capacity : 25KVA

Primary Voltage : 2400/4160GrdY

Secondary Voltage : 120/240V

Insulation Fluid : FR-3 Oil - Non PCB Fluid

Frequency : 60 Hz

Winding Material : Copper

Dimensions : 21.0-W x 21.8-D x 32-H

Contact Now

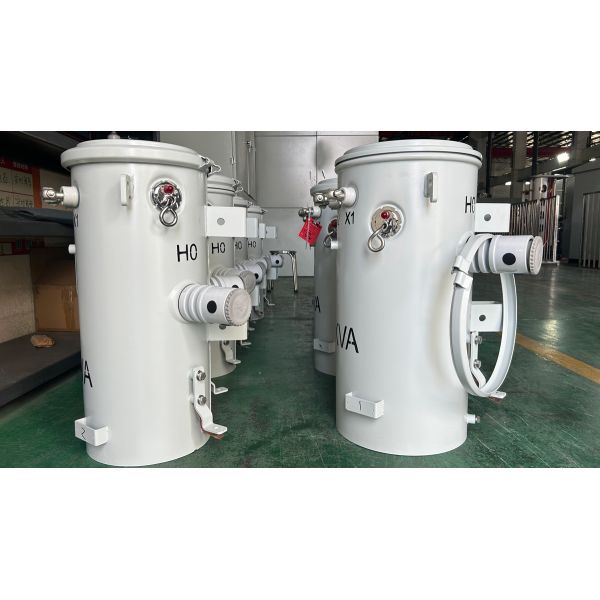

Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified

CSP transformer A CSP transformer can be generally defined as a Completely Self Protected device, also known as self-protection transformer, and it is a pole mounted transformer. It is common practice for a CSP transformer to utilize its secure methods and features to guard against harm, and during the installation process, you won't need to install any specialist safety features, which will save you both time and money in addition to eliminating a potential hassle.

Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified

Main data

Phase	Single Phase
Capacity	25 KVA
Primary Voltage	2400/4160GrdY Grounded Wye (2 Wire)
Primary BIL	75 kV
Secondary Voltage	120/240V (L-N-L)
Secondary BIL	30kV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Fluid	FR-3 Oil - Non PCB Fluid
Secondary Overcurrent Protection (OCP)	Magnetic Circuit Breaker w/ Thermal and Current Protection Equipped with Overload Warning Light
Impedance (approx)	2%
Winding Material	Copper

Technical drawings

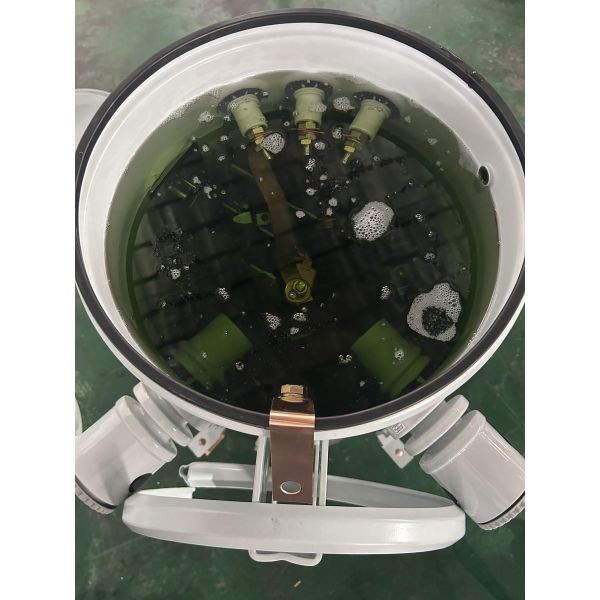

CSP transformer components

1. lifting lugs
2. arrester mounting pads
3.cover-mounted high voltage porcelain bushing(s)with eyebolt terminal
4. low voltage bushings with eyebolt terminals
5.low voltage neutral grounding strap (not shown)(10-50 kva class b-2 and b-3 only)
6. Ansi support lugs (hanger brackets)with laser inscribed nameplate on the lower bracket
7. polyester insulated cover
8. self-venting and resealing cover assembly
9. core
10. coil
11. centerline core/coil assembly support brackets
12.low voltage leads
13. oil fill plug with the cover ground strap
14. tank ground pad
15.primary protective link (mounted in high voltage bushing)
16. surge arrester
17. secondary circuit breaker
18. secondary breaker operating handle with emergency overload reset and overload signal light

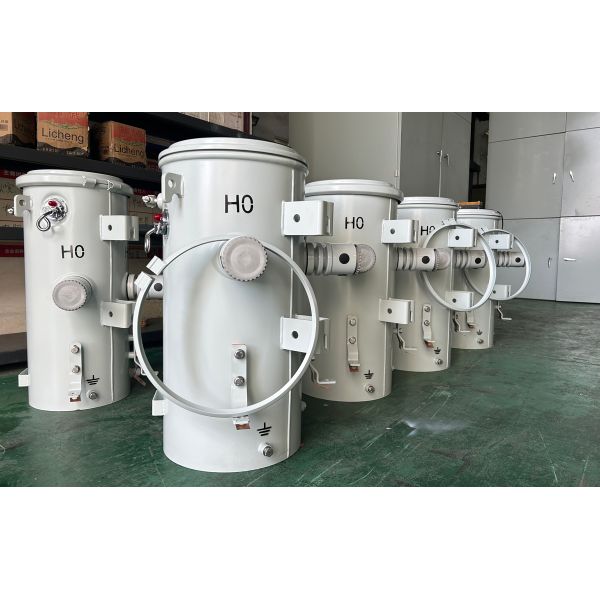

Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified

What Is the Advantage Of The CSP Transformer?

Reduce the environmental damage that could occur if transformers fail
There is less potential for fire.
The risk of transformer explosions can be highly eliminated.
In the event of an oil leak, the protective system will automatically turn off the transformer.
Ensure the safety of the maintenance team
Fixing a faulty transformer takes place in its tank.
Integration:The tight integration of protections ensures a secure system as a whole.
Coordination:Customer contact is necessary for protection to guarantee CSP system selectivity.
Flexibility:CSP transformer functionality can be generally preserved in the face of varying network protection strategies by employing several fuses.It is feasible to assemble the part without using an oil-level sensor.
Safety:Keeping users, their data, and the network itself secure is a top priority.
Savings:The high degree of protection integration provides an opportunity to simplify the substation.
Quality:CSP transformers can enhance the energy delivery quality by minimizing the shut-down time.

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE/CSA	1.0-4.5%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Production process

Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified

UL and CUL certificates for pole-mounted transformers

Electric Pole Transformer 25KVA CSP Type Single Phase Pole Mounted Transformer Oil Immersed 4160V to 120V UL cUL Certified

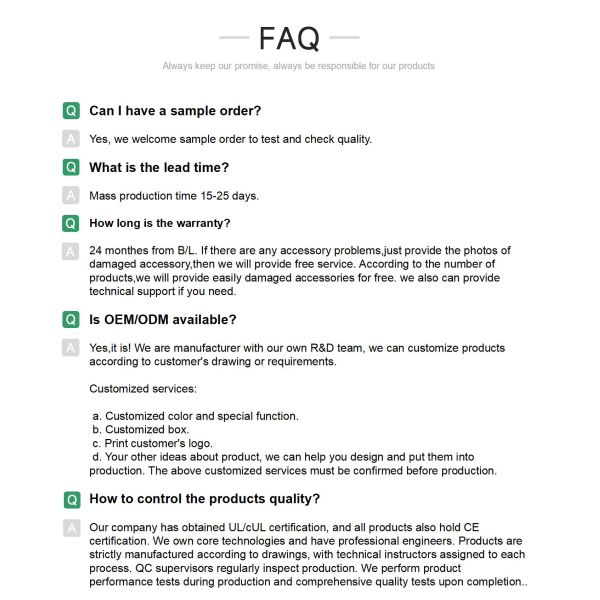

FAQ
